Nhanganyaya

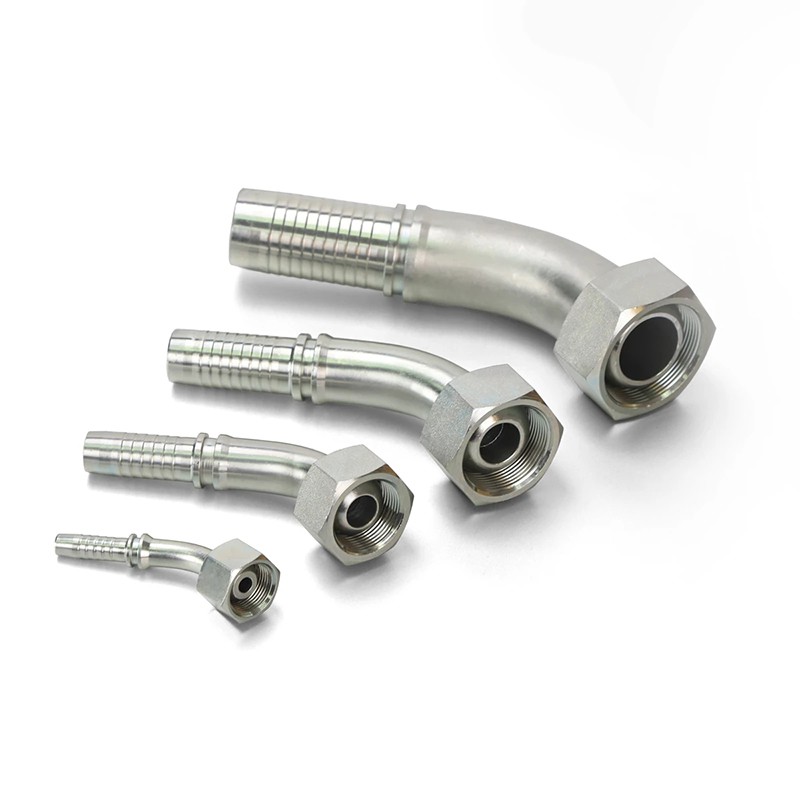

Yedu Yechirume Hydraulic Hose Fitting yakagadzirwa kuti iunze yakachengeteka,, inobvinza-makonesheni euchapupu mukudiwa kwekushandisa mahydraulic. Yakagadzirwa nechaiyo shinda uye yakasimba zvinhu, kuenderana uku kunovimbisa kuita kwakavimbika mumaindasitiri, nhare, uye marine hydraulic system.

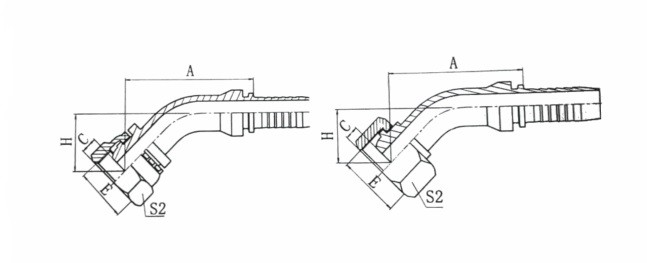

Zvinotsanangurwa
|
CHIKAMU NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
||||
|
DN |
DASH |
A |
C |
H |
S2 |
||
|
20141-10-03 |
M10X1 |
5 |
03 |
41.1 |
2.5 |
20.7 |
14 |
|
20141-10-04 |
M10X1 |
6 |
04 |
43.2 |
2.5 |
21.5 |
14 |
|
20141-12-03 |
M12X1.5 |
5 |
03 |
40.9 |
4 |
21.2 |
17 |
|
20141-12-04 |
M12X1.5 |
6 |
04 |
43 |
4 |
22 |
17 |
|
20141-14-04 |
M14X1.5 |
6 |
04 |
43.4 |
4.5 |
21.3 |
19 |
|
20141-14-05 |
M14X1.5 |
8 |
05 |
45.5 |
4.5 |
22.2 |
19 |
|
20141-16-04 |
M16X1.5 |
6 |
04 |
43.7 |
4.5 |
21.4 |
22 |
|
20141-16-05 |
M16X1.5 |
8 |
05 |
45.8 |
4.5 |
22.5 |
22 |
|
20141-16-06 |
M16X1.5 |
10 |
06 |
47.4 |
4.5 |
24.1 |
22 |
|
20141-18-05T |
M18X1.5 |
8 |
05 |
46.8 |
4 |
22.6 |
24 |
|
20141-18-06 |
M18X1.5 |
10 |
06 |
48.5 |
4 |
24.2 |
24 |
|
20141-18-08 |
M18X1.5 |
12 |
08 |
52.2 |
4 |
25.7 |
24 |
|
20141-20-06T |
M20X1.5 |
10 |
06 |
48.2 |
5.5 |
23.9 |
27 |
|
20141-20-08 |
M20X1.5 |
12 |
08 |
62.1 |
5.5 |
27.2 |
27 |
|
20141-22-06T |
M22X1.5 |
10 |
06 |
58.4 |
5 |
25.7 |
27 |
|
20141-22-08 |
M22X1.5 |
12 |
08 |
62.1 |
5 |
27.2 |
27 |
|
20141-24-08T |
M24X1.5 |
12 |
08 |
61.1 |
5.5 |
26.1 |
30 |
|
20141-24-10 |
M24X1.5 |
16 |
10 |
75.4 |
5 |
29.6 |
30 |
|
20141-27-10DT |
M27X1.5 |
16 |
10 |
74.4 |
5.5 |
29.6 |
32 |
|
20141-27-10T |
M27X2 |
16 |
10 |
74.4 |
5.5 |
29.6 |
32 |
|
20141-30-12D |
M30X1.5 |
20 |
12 |
80.9 |
6 |
33.5 |
36 |
|
20141-30-12 |
M30X2 |
20 |
12 |
80.9 |
6 |
33.5 |
36 |
|
20141-36-14T |
M36X2 |
22 |
14 |
83 |
7 |
32.64 |
41 |
|
20141-39-16T |
M39X2 |
25 |
16 |
88.2 |
7 |
33.95 |
46 |
|
20141-45-20T |
M45X2 |
32 |
20 |
99.1 |
8.5 |
38.4 |
55 |
|
20141-52-24T |
M52X2 |
40 |
24 |
114.1 |
9 |
43.4 |
60 |
Parameters/Technical Data
|
Original |
Zhejiang, China |
Delivery date |
Negotiable |
|
Certification |
GB/T19001-2016 idt ISO9001:2015 |
Packing |
Export standard |
|
Material |
Carbon Steel |
Warranty |
1 gore |
|
Nguva yekubhadhara |
TT |
MOQ |
2000 |
|
Condition |
New |
Color |
White zinc, ruvara zingi |
About Company
Zvakanakira
Nei Nyanzvi Dzichitsanangura Yedu Mafittings:
40% hupenyu hurefu hwebasa kupfuura avhareji yeindasitiri
72-awa yekugadzira emergency service
Akazvitsaurira mainjiniya ekushandisa anopihwa kune ese makuru account
Chaiyo-nguva yekuona zvinhu kuburikidza nevatengi portal
FAQ
Mubvunzo: Chii chinonzi Male Hydraulic Hose Fitting?
A: Mukono we hydraulic hose fitting imhando yekubatanidza yakagadzirirwa kuisa hydraulic hoses kune zvikamu (semuenzaniso, mapombi, mavharuvhu, masilinda). Inosanganisira shinda dzekunze dzinokochekera pachiteshi chemukadzi{3} chine mathreaded port kana adapta.
Mubvunzo: Ndeapi marudzi akajairika echirume hydraulic fittings?
A: Mhando dzakakurumbira dzinosanganisira:
JIC (Joint Industry Council): 37-degree flared zvigaro.
NPT (National Pipe Tapered): Tapered shinda dzekuisa chisimbiso.
BSP (British Standard Pipe): Parallel kana tapered threads (BSPP/BSPT).
ORFS (O-Ring Face Seal): Face face ine O-ring kuitira kuti ibude-inokonekerwa.
Metric: shinda dzinoenderana ne ISO/ DIN zviyero.
Mubvunzo: Ndinosarudza sei iyo yakakodzera murume hydraulic fitting?
A: Funga:
Mhando/saizi yeshinda (semuenzaniso, 1/2" NPT, JIC #8).
Pressure rating (match kune zvinodiwa system).
Material (simbi, Stainless simbi, ndarira).
Kuenderana nehose uye midziyo.
Mubvunzo: Ini ndinodzivirira sei kudonha muvarume hydraulic fittings?
A: Ita shuwa kuti tambo dzakachena uye hadzina kukuvara.
Shandisa thread sealant (yeNPT) kana O-mhete (yeORFS).
Simbisa kune torque inokurudzirwa{0}usapfuura-kuomesa.
Mubvunzo: Ndinogona here kusanganisa shinda dzakasiyana siyana (semuenzaniso, NPT neBSP)?
A: Kwete. Kusanganisa tambo kunogona kukonzera kudonha kana kukanganisa. Shandisa ma adapter kana uchibatanidza maitiro akasiyana.
Mubvunzo: Ndeupi musiyano uripo pakati peNPT neNPTF tambo?
A: NPT (National Pipe Tapered): Inoda chisimbiso.
NPTF (Dryseal): Yakagadzirirwa kuvhara pasina chisimbiso asi inowanzoshandiswa nayo kuchengetedza.
Mubvunzo: Ndinoyera sei saizi yeshinda yemurume hydraulic fitting?
A: Shandisa caliper kuyera dhayamita yekunze (OD) yeshinda uye bvunza shinda chati. Cherechedza pitch (tambo pa inch for imperial, mm for metric).
Mubvunzo: Ndezvipi zvinhu zvakagadzirwa nevarume hydraulic fittings?
A: Simbi yekabhoni: Inodhura-inoshanda, yakasimba.
Simbi isina simbi: isingadziviriri-.
Brass: Inoshandiswa munzvimbo yakaderera{{0}kudzvanywa, inoora.
Q: Ndeipi yakanyanya kudzvanywa chiyero chevarume fittings?
A: Inosiyana nerudzi/zvinhu (semuenzaniso, JIC mafittings anogona kubata 5,000+ PSI). Tarisa zvakatemwa nemugadziri.
Mubvunzo: Ndinogona kushandisa zvakare varume hydraulic fittings?
A: Hongu, kana isina kukuvara. Ongorora shinda nenzvimbo dzekuvharira kuti dzakasakara/pakatsemuka usati washandisazve.
Mubvunzo: Sei kukwana kwangu kwechirume kunoramba kuchisununguka?
A: Vibration: Shandisa washer yekukiya kana shinda-mvura yekukiya.
Torque isiriyo: Tevedzera zvakatemwa zvemugadziri.
Thread wear: Tsiva kana yakabviswa.
Mubvunzo: Ndingatenga kupi-zvemhando yepamusoro dzevarume hydraulic fittings?
A: Tenga kubva kune vakasimbiswa hydraulic suppliers kana vagadziri. Ita shuwa kutevedzera zviyero (SAE, ISO, DIN).
